Name: 25 W soldering iron set
SKU: 1432
Availability: InStock

Versatile soldering kit in an aluminium case.

Excellent for soldering electrical and electronic components and small repairs. The set of materials enables to solder most common metals, including those difficult to solder, such as aluminium and stainless steel. The set includes:

Heated soldering iron 25 W,
Aluminium soldering flux – 40 ml,
Stainless steel soldering flux – 40 ml,
Q-Solder GEL soldering flux – 10 ml,
Q-Solder liquid soldering flux – 110 ml,
Soldering tips refresher Q-Solder CCG – 20 g,
Isopropanol in the spray – 110 ml,
Lead-tin solder – 2 pcs, 10 g each,
Sn99,3Cu0,7 lead-free solder – 2 pcs, 14 g each.

Detailed description of the kit:

	PJ-25 soldering iron. A precision-made soldering iron, particularly suitable for general electrotechnical work. It can also be used in electronics for the assembly of through-hole components. Equipped with a long-life iron-plated tip. Rated power 25 W, 2,5 mm iron-coated soldering tip, heating time 3,5 min, steady-state temperature 400 °C, weight with cord 0,20 kg, rated voltage 230 V.

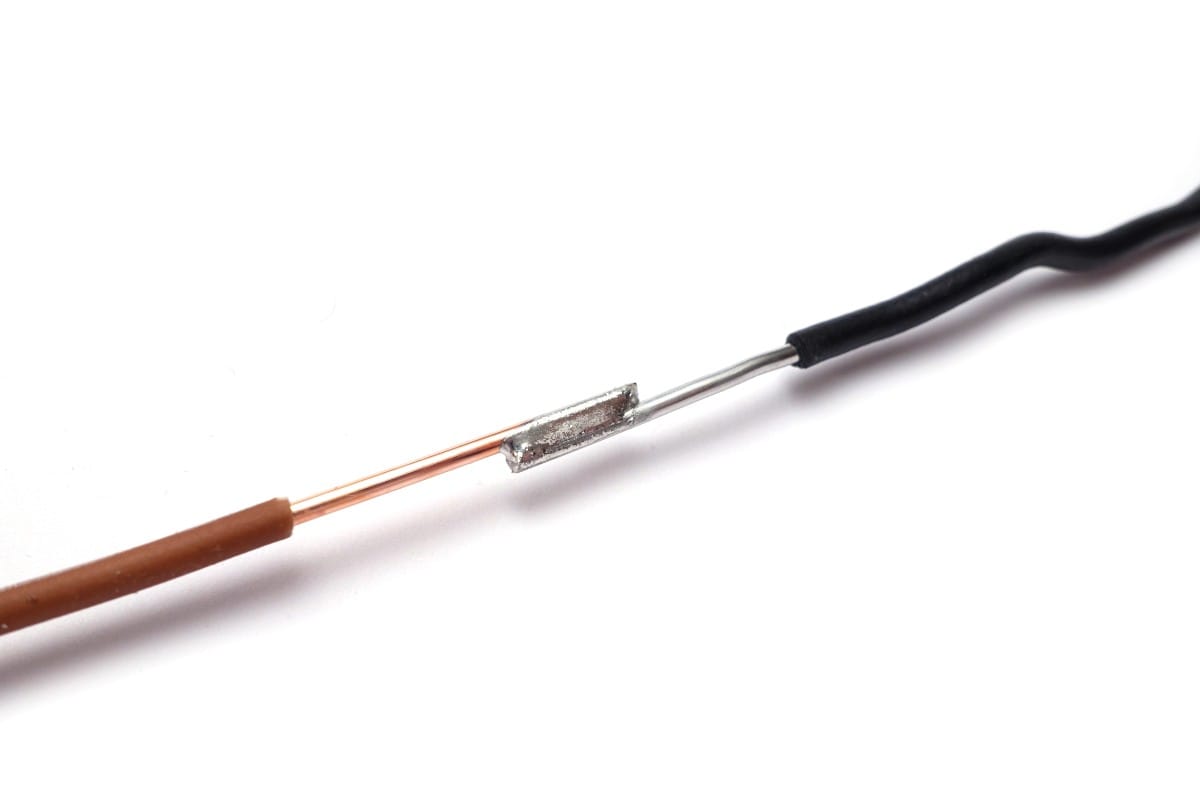

	AlumWeld Flux 40 ml Flux for the soft soldering of aluminium and its alloys. Soldering is made using a soldering iron at temperatures up to 250 °C. It is recommended to use lead-free solder. The joints have considerable strength, conduct electricity and heat.

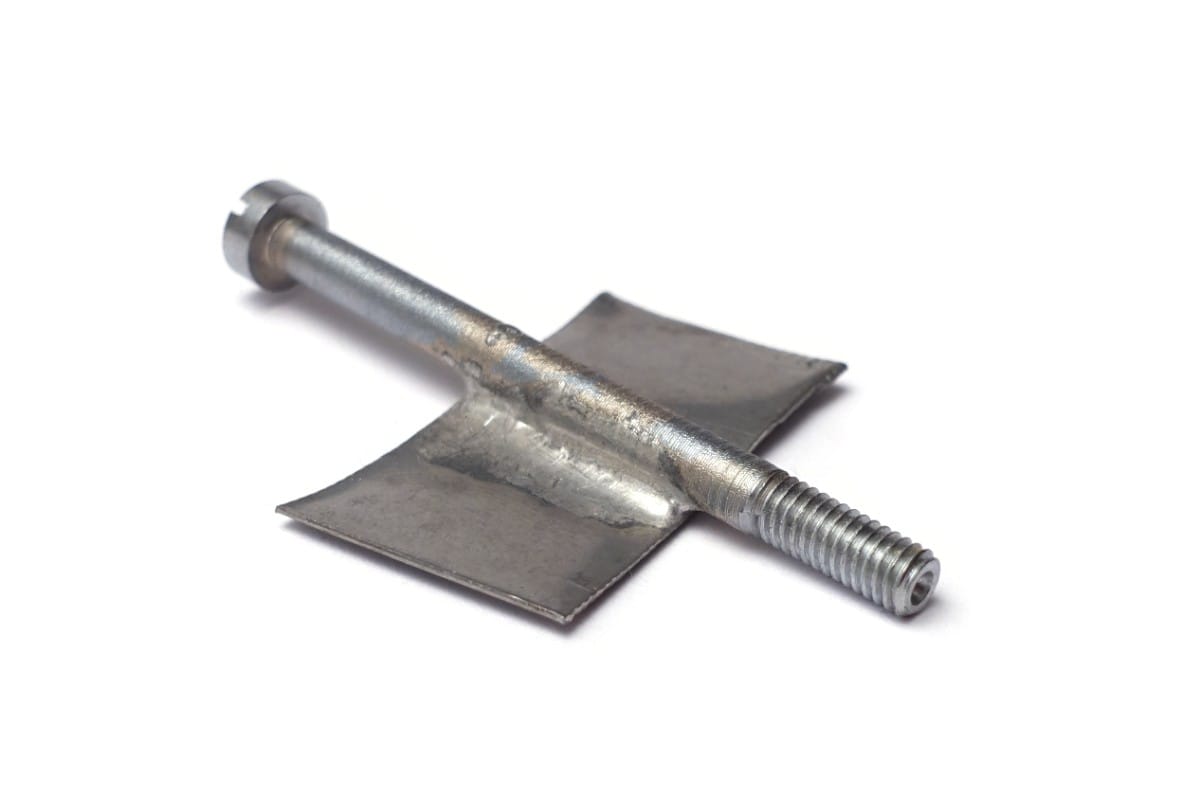

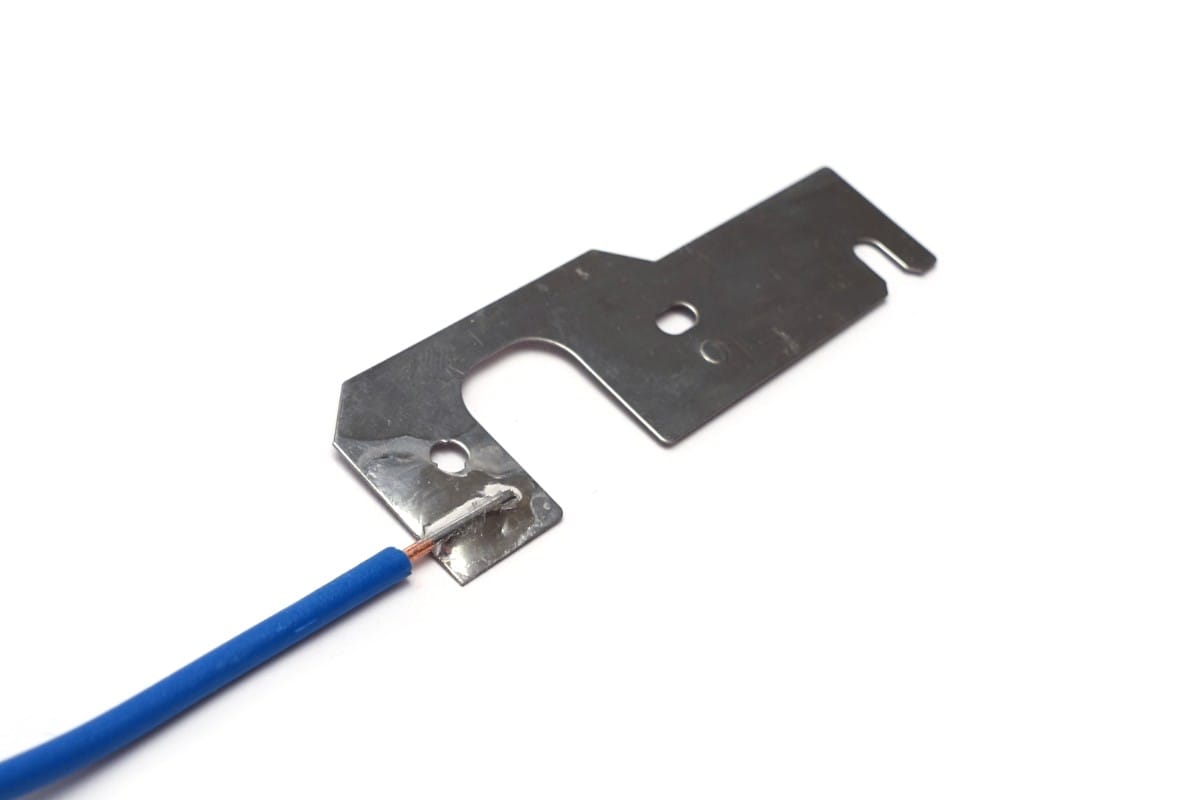

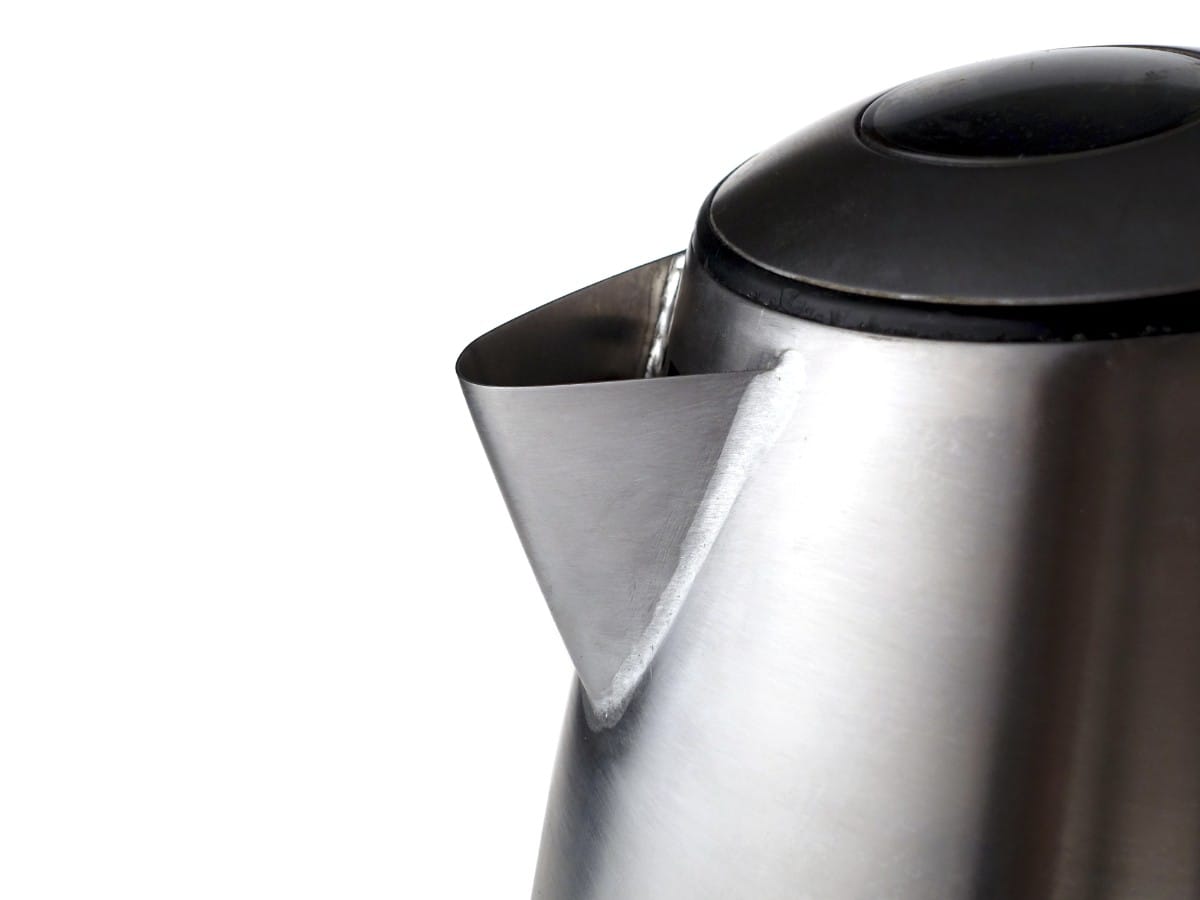

	AlumWeld Chrom 40 ml A highly active flux for the soft soldering of alloyed steels, including stainless and acid-resistant steel. It also allows to solder many other metals. Tin-based solder is used as a binder.
	Q-Solder GEL soldering flux 10 ml. Easy to dispense medium-activity Q-Solder gel flux for soldering SMD circuits. Contains mild organic activators (without halogens). Soldering residues do not cause corrosion. If necessary, they can be removed with isopropyl alcohol (IPA) or ethyl alcohol.
	Q-Solder HR-10 liquid flux 110 ml. Professional flux designed for soldering electronic circuits. Contains rosin and mild organic activators. Soldering residues do not cause corrosion and do not need to be removed. If necessary, they can be removed with isopropyl alcohol (IPA) or ethyl alcohol.
	Q-Solder CCG tip refresher – 20 g Chemical cleaner designed to regenerate heavily oxidised soldering tips. Removes oxides and coats the tip with lead-free tin. Method of use: Dip the hot tip into the cleaner for a few seconds. The cleaner will melt and release a small amount of gas. The tip will be tinned. After removing the tip, clean excess tin with a sponge or brass wool.
	Isopropanol in the spray 110 ml Isopropanol (isopropyl alcohol, IPA) – cleaner for electronics, optics and precision mechanics. Removes grease, lubricants, flux residues and other types of dirt. Neutral to most plastics and varnishes. Evaporates completely – no residue left after use. We bottle only isopropanol from large, European suppliers, which guarantees a high quality product. Residue after evaporation max. 0.0004 %.
	Lead-free solder – 2 pcs, 14 g each Q-Solder Sn99.3Cu0.7 lead-free solder, complies with the requirements of the RoHS directive 2002/95/EC. Contains non-corrosive “No Clean” flux (1.1.3 to EN 29454, SW 32 to DIN 8511). Does not require cleaning after soldering. High alloy quality is ensured by air-free smelting and a raw material purity of at least 99.90%. diameter ø1 mm, soldering temperature: 300 °C do 400 °C, composition: tin: 99,3 ± 0,2%, copper: reminder.
	Sn60Pb40 lead-tin solder – 2 pcs, 10 g each Designed for soldering electronic components. Contains non-corrosive flux type RMA in the core (1.1.2 acc. to PN EN 29454, SW 26 acc. to DIN 8511). Does not require washing after soldering. High alloy quality is ensured by air-free alloying and raw material purity of at least 99.90%. diameter ø1 mm, soldering temperature: 320 °C do 420 °C, composition: tin: 60 ± 0,5%, lead: remainder.
